House of Einherjar

Introduction

• This exploit technique allows us to use malloc to return a chunk at an almost arbitrary address within av->system_mem limits.
• We exploit the malloc_consolidate feature here.

Code Review

/* Consolidate backward.  */
  if (!prev_inuse(p))
    {
      INTERNAL_SIZE_T prevsize = prev_size (p);
      size += prevsize;
      p = chunk_at_offset(p, -((long) prevsize));
      if (__glibc_unlikely (chunksize(p) != prevsize))
        malloc_printerr ("corrupted size vs. prev_size while consolidating");
      unlink_chunk (av, p);
    }

• When malloc is called it consolidates any continuous free chunk sequences within the free list.
• It checks whether the PREV_INUSE bit is set to ascertain whether the previous chunk is allocated or not.
• If the PREV_INUSE bit is not set, it reads the PREV_SIZE field to get the previous chunks size and adds it to the current chunk’s size.
• The pointer to be returned is obtained by subtracting the previous chunk’s size from the current chunk’s address.
• The following check takes place - *Check if size of previous chunk and prevsize(p) match (chunksize(p) != prevsize) else corrupted size vs. prev_size while consolidating.
• The unlink_chunk function is called to unlink the chunk from the free list.
• This also entails the check for whether the bk->fd and fd->bk pointers point to the current chunk.

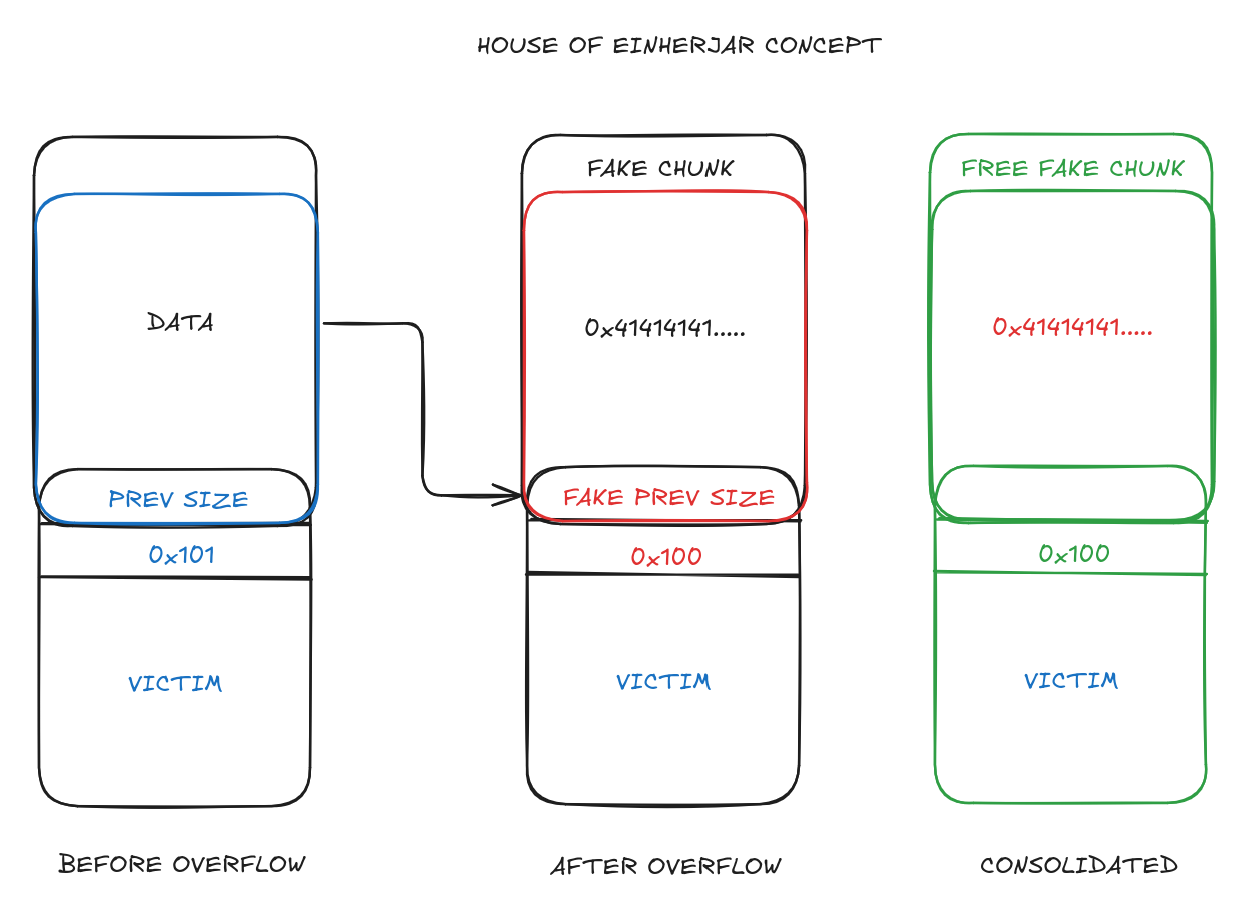

Exploitation

• Using an off-by-one write we can set the PREV_INUSE bit of the next chunk to 0.
• We craft a fake chunk where we want the fake chunk pointer to be by setting the size of the chunk followed by the fd and bk pointing to the fake chunk.
• The fd and bk points to the fake chunk in order to bypass the unlink_chunk checks.
• We need to set the PREV_SIZE of the next chunk such that the address of the next chunk minus the prev size gives you the location of the fake chunk.
• Once these steps are done you can go ahead and free the victim chunk which will lead to consolidation and a pointer to your fake chunk being returned.
• One way to leverage this mechanism is to get overlapping chunks using the fake chunk over the chunk used to set the PREV_INUSE bit.
• This can be used to execute a TCache Poisoning attack to get arbitrary write.

Example Challenges

• LACTF 2025 (library)
